HEL Billet Front Brake Master Cylinder
HEL Billet Front Brake Master Cylinder
Couldn't load pickup availability
Full CNC Machined Master Cylinders.
All metal parts of the master cylinder (including levers) are machined by CNC machines from solid billets of 6082-T6 aluminium.
Each master cylinder body takes an hour of machining time to remove the material to our exacting standards with the bore measured automatically in cycle.
Each master cylinder is individually finished and assembled by hand and comes with our latest design of lever which allows three ratios from one lever.
The lever features a pill shaped hole into which one of two plugs are inserted, One has an offset hole – with the hole nearest the master cylinder you get a -1 ratio. If you rotate the plug 180 degrees it offers you a +1 ratio and if you use the plug with a central hole you obtain a 1:1 ratio. This means that with a 16mm master cylinder you can obtain a 15/16, 16/16 and 17/16 from one lever and two inserts.
With the 19mm master cyilinder you can obtain an 18/19, 19/19 and a 20/19 from one lever and two inserts.
HEL Performance Master Cylinders include a fully cnc black lever offering three ratios in one.
All parts for our master cylinders are available to purchase separately and we will be adding this option on this page in the future.
Share

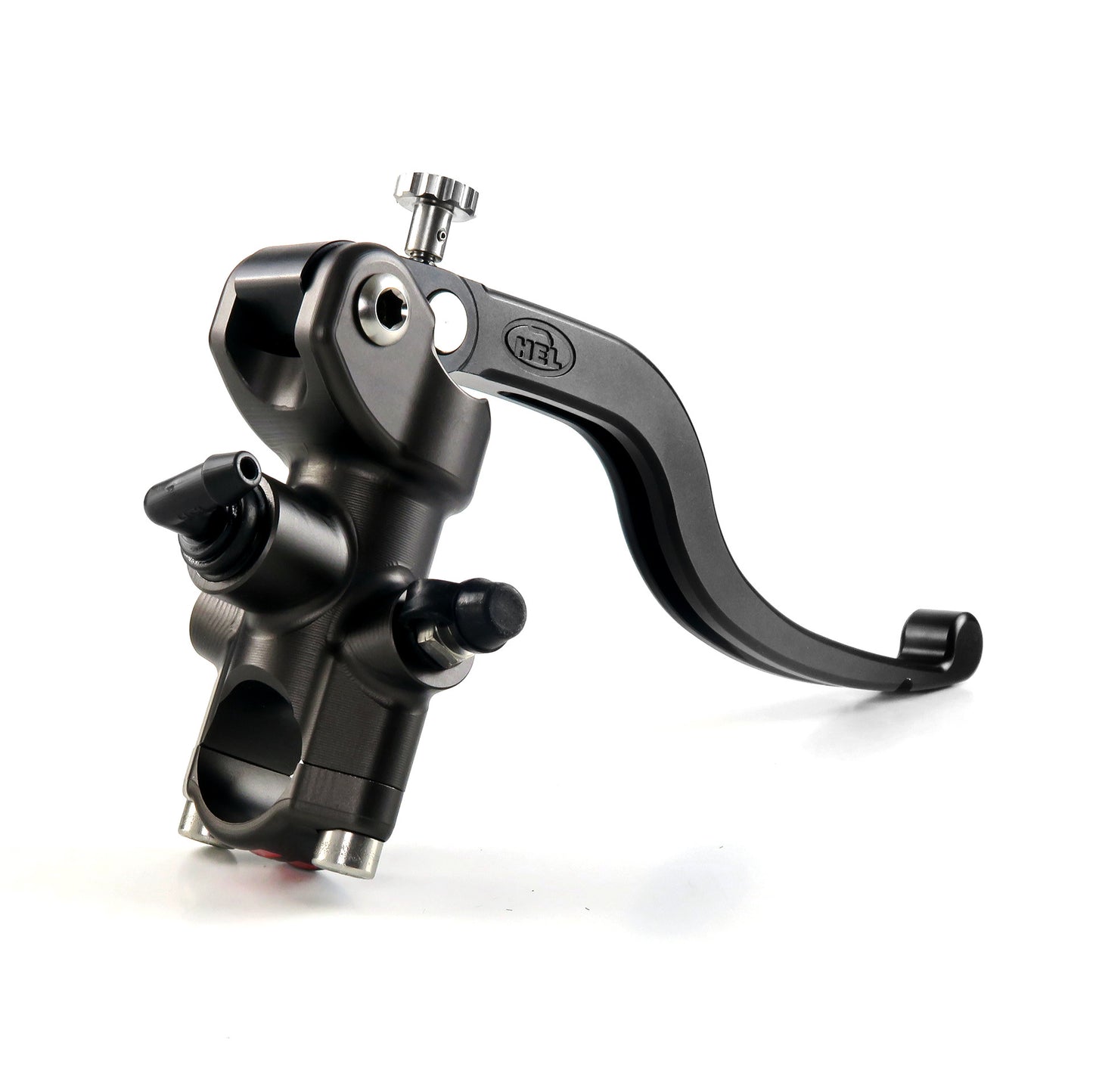

![HEL Billet Front Brake Master Cylinder](http://donisracing.com/cdn/shop/files/hel-front-master-cylinder-new-grey-a.jpg?v=1701857741&width=1445)

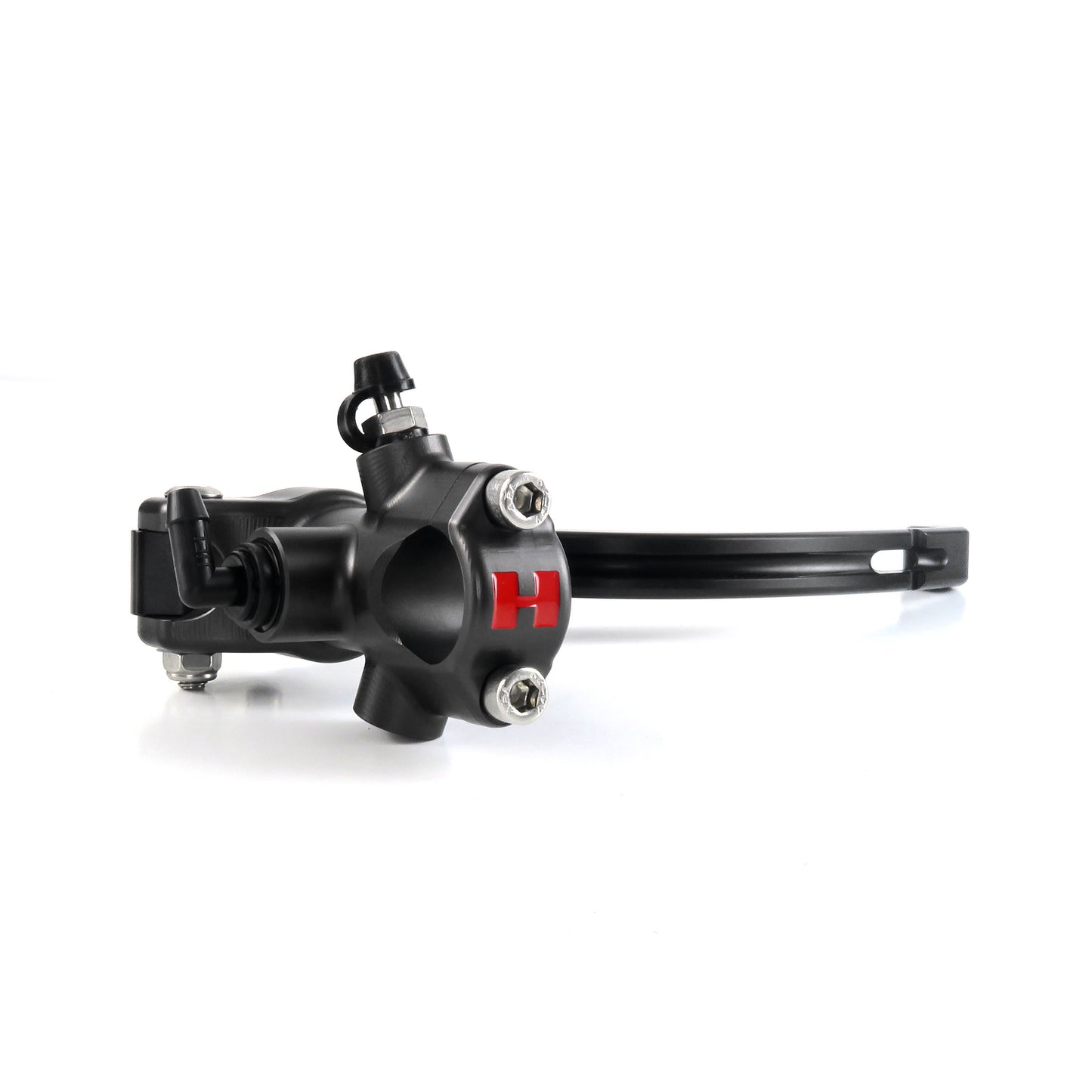

![HEL Billet Front Brake Master Cylinder](http://donisracing.com/cdn/shop/files/hel-front-master-cylinder-new-grey-b.jpg?v=1701857741&width=1445)

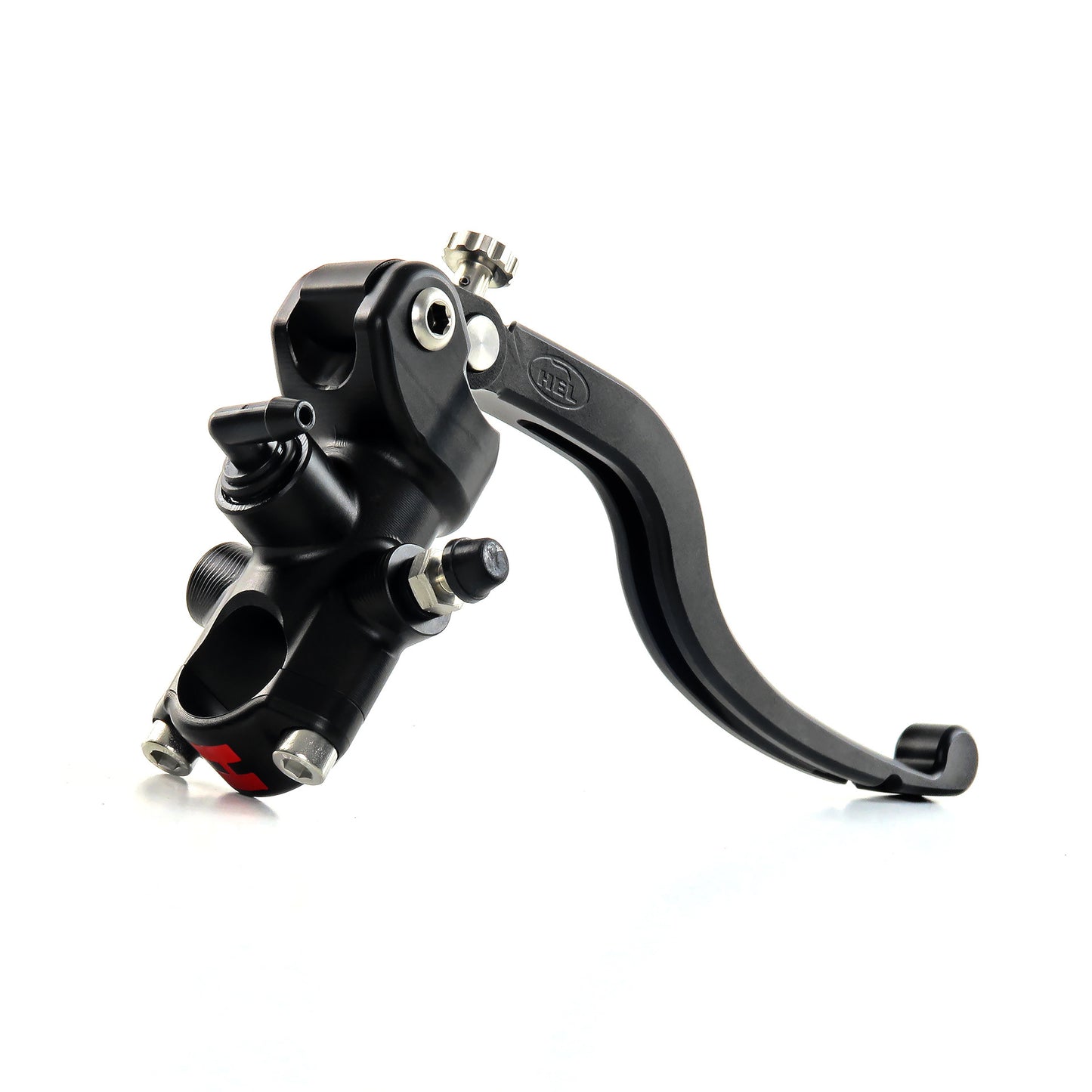

![HEL Billet Front Brake Master Cylinder](http://donisracing.com/cdn/shop/files/hel-front-master-cylinder-black-a_1.jpg?v=1701857741&width=1445)
