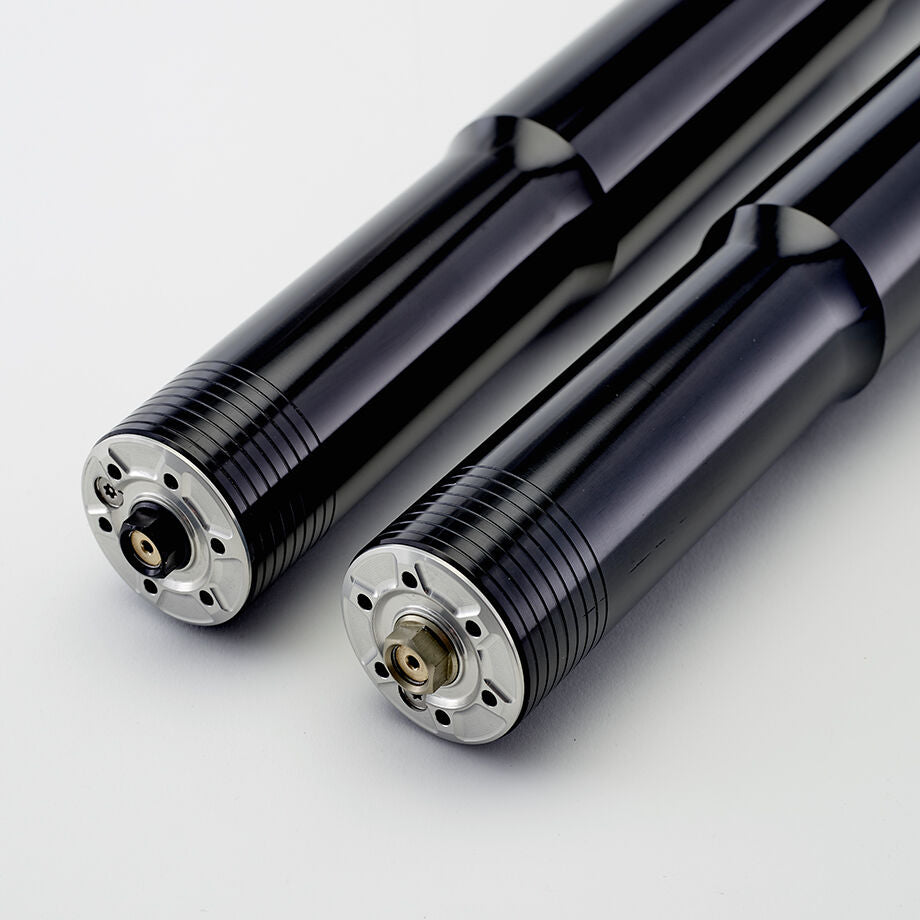

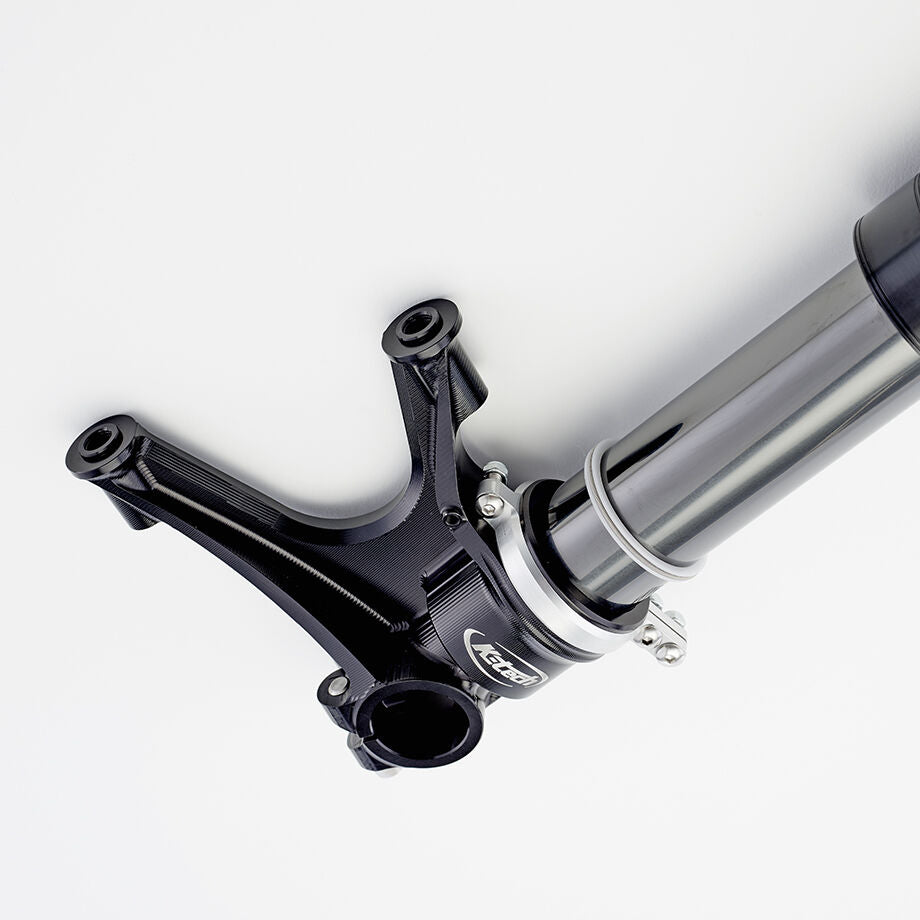

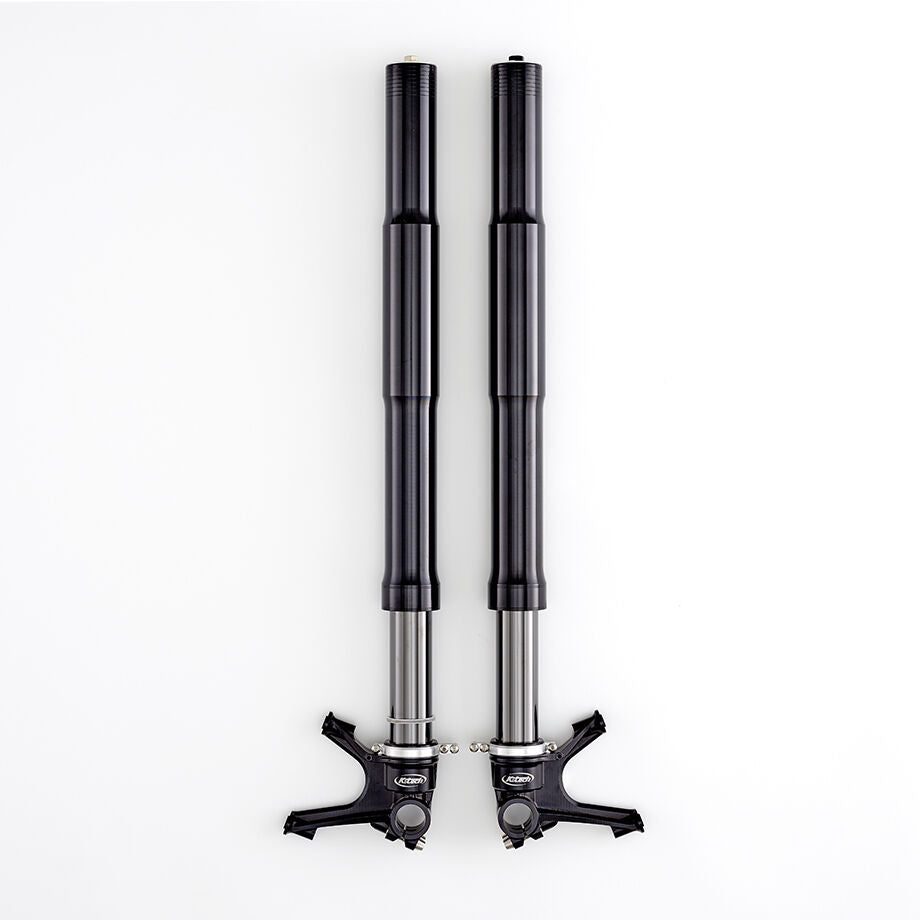

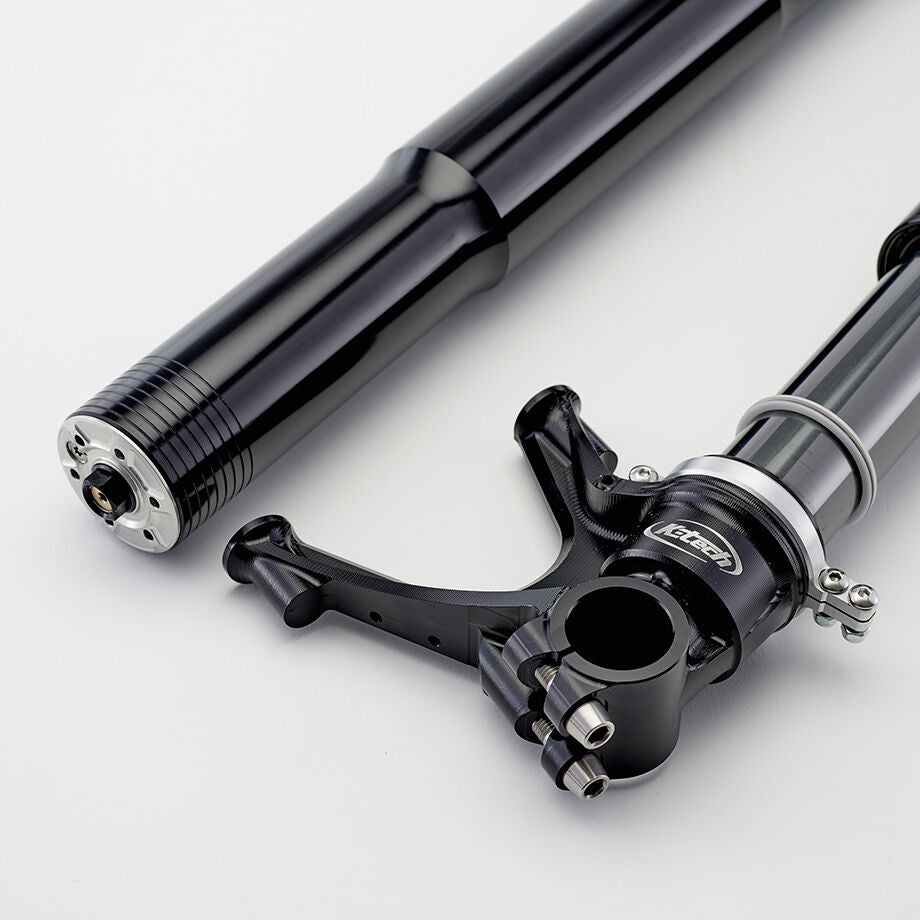

FRONT FORKS KTR-4 WITH DIRECT DAMPING SYSTEM - UNIVERSAL

The KTR-4 front forks use the patent championship-winning DDS (Direct Damping System) technology, which has been designed to compete at the highest levels of motorcycle racing. The DDS pressurised damping system has 20mm displacing pistons, to create a high flow of oil through the 32mm control valves, giving precise damping control, eliminating any cavitation, making the system very stable under extreme conditions. The damping circuits are designed to work independently to improve the dynamics and response time. The system is pressurised by a spring force keeping it stable under all working temperatures.

TO MOUNT THESE FORKS YOU NEED AFTERMARKET CLAMPS, HANDLEBARS, WHEEL SPINDLE INSERTS ETC.

Length:- 770mm

Stroke:- 130mm

30 clicks compression adjustment

30 clicks rebound adjustment

18mm preload adjustment

Direct Damping technology

Outertube material 7075-T6

Slide Pipes DLC coated and superfinished

Axle brackets material 7075-T6 for maximum strength and durability

Suitable for 290-320mm disc diameters with 108mm centre caliper's

Supplied with three pairs of springs and the necessary tools needed to change them

Wide range of spring rates available

Used in the highest levels of racing including British Superbike and Isle of Man TT



Fits to:

Ducati 1198R 2010
Ducati 1198R 2011
Ducati Panigale 1199R 2012
Ducati Panigale 1199R 2013
Ducati Panigale 1199R 2014
Ducati Panigale 1299R 2015
Ducati Panigale 1299S 2015
Ducati 1098 2007
Ducati 1098 2008
Ducati 1198 2009
Ducati 1198 2010
Ducati 1198 2011
Ducati 1098R 2008
Ducati 1098R 2009
Aprilia RSV4 1000R 2010
Aprilia RSV4 1000R APRC 2011
Aprilia RSV4 1000R APRC 2012
Aprilia RSV4 1000R APRC 2013
Aprilia RSV4 1000R APRC 2014
Aprilia RSV4 1000R APRC 2015
Aprilia RSV4 1000 Factory 2009
Aprilia RSV4 1000 Factory 2010
Aprilia RSV4 1000 Factory 2011
Aprilia RSV4 1000RF 2015
Aprilia RSV4 1000RF 2016
Aprilia RSV4 1000RR 2015
Aprilia RSV4 1000RR 2016
BMW S1000RR 2012
BMW S1000RR (DDC) 2015
Honda CBR1000RR 2004
Honda CBR1000RR 2008
Honda CBR1000RR 2012
Honda CBR1000RR-SP 2014
Kawasaki ZX-10R 2004
Kawasaki ZX-10R 2005
Kawasaki ZX-10R 2006
Kawasaki ZX-10R 2007
Kawasaki ZX-10R 2008
Kawasaki ZX-10R 2009
Kawasaki ZX-10R 2010
Kawasaki ZX-10R 2011
Kawasaki ZX-10R 2012
Kawasaki ZX-10R 2013
Kawasaki ZX-10R 2014
Kawasaki ZX-10R 2015
Kawasaki ZX-10R 2016
Suzuki GSX-R1000 2001
Suzuki GSX-R1000 2002
Suzuki GSX-R1000 2003
Suzuki GSX-R1000 2004
Suzuki GSX-R1000 2005
Suzuki GSX-R1000 2006
Suzuki GSX-R1000 2007
Suzuki GSX-R1000 2008
Suzuki GSX-R1000 2009
Suzuki GSX-R1000 2010
Suzuki GSX-R1000 2011
Yamaha YZF-R1 2004
Yamaha YZF-R1 2005
Yamaha YZF-R1 2006
Yamaha YZF-R1 2007
Yamaha YZF-R1 2008
Yamaha YZF-R1 2009
Yamaha YZF-R1 2010
Yamaha YZF-R1 2011
Yamaha YZF-R1 2012
Yamaha YZF-R1 2013
Yamaha YZF-R1 2014
Yamaha YZF-R1 2015
Yamaha YZF-R1M 2015
BMW S1000RR 2010
BMW S1000RR 2011
Ducati Panigale 1199S 2012
Ducati Panigale 1199S 2013
Ducati Panigale 1199S 2014
Suzuki GSX-R1000 2012
Suzuki GSX-R1000 2013
Suzuki GSX-R1000 2014
Suzuki GSX-R1000 2015
Suzuki GSX-R1000 2016
MV Agusta F4 1000 RR 2014
BMW S1000RR 2013
Ducati Panigale 1199 2012
Ducati Panigale 1199 2013
Ducati Panigale 1199 2014
Ducati Panigale 1299 2015
Kawasaki ZX-10RR 2017
Suzuki GSX-R1000 2017
Suzuki GSX-R1000R 2017
Honda CBR1000RR-SP2 2017
Honda CBR1000RR-SP1 2017
Honda CBR1000RR-SP 2015
Honda CBR1000RR 2017
Aprilia RSV4 1000 Factory APRC 2011
Aprilia RSV4 1000 Factory APRC 2012
Aprilia RSV4 1000 Factory APRC 2013
Aprilia RSV4 1000 Factory APRC 2014
Aprilia RSV4 1000 Factory APRC 2015
Aprilia RSV4 1000RF 2017
Aprilia RSV4 1000RR 2017
Suzuki GSX-R1000 2018
Suzuki GSX-R1000R 2018
Kawasaki ZX-10RR 2018
Kawasaki ZX-10R 2017
Honda CBR1000RR 2018
Honda CBR1000RR-SP1 2018
Honda CBR1000RR-SP2 2018
BMW S1000RR (DDC) 2016
BMW S1000RR (DDC) 2017
BMW S1000RR (DDC) 2018
BMW S1000RR 2014
BMW S1000RR 2015
BMW S1000RR 2016
Ducati Panigale 1299 2016
Ducati Panigale 1299 2017
Ducati Panigale 1299R 2016
Ducati Panigale 1299R 2017
Ducati Panigale 1299S 2016
Ducati Panigale 1299S 2017
Aprilia RSV4 1000RF 2018
Aprilia RSV4 1000RR 2018
MV Agusta F4 1000 RR 2015
MV Agusta F4 1000 RR 2016
MV Agusta F4 1000 RR 2017
BMW S1000RR 2019
Kawasaki ZX-10R 2018
Ducati Panigale V4S 2018
Ducati Panigale V4 2018
Yamaha YZF-R1 2016
Yamaha YZF-R1 2017
Yamaha YZF-R1 2018
Yamaha YZF-R1 2019
Suzuki GSX-R1000 2019
Suzuki GSX-R1000R 2019
Yamaha YZF-R1M 2016
Yamaha YZF-R1M 2017
Yamaha YZF-R1M 2018
Yamaha YZF-R1M 2019
Honda CBR1000RR 2019
Honda CBR1000RR-SP 2016
Honda CBR1000RR-SP 2017
Honda CBR1000RR-SP1 2019
Honda CBR1000RR-SP2 2019
Honda CBR1000RR 2009
Honda CBR1000RR 2010
Honda CBR1000RR 2011
Honda CBR1000RR 2013
Honda CBR1000RR 2014
Honda CBR1000RR 2015
Honda CBR1000RR 2016
Honda CBR1000RR 2005
Honda CBR1000RR 2006
Honda CBR1000RR 2007
Kawasaki ZX-10R 2019
Kawasaki ZX-10RR 2019
Kawasaki ZX-10R SE 2018
Kawasaki ZX-10R SE 2019
Aprilia RSV4 1000RR 2019
Aprilia RSV4 1100 Factory 2019
Aprilia RSV4 1100 Factory 2020
Aprilia RSV4 1100 Factory 2021
Aprilia RSV4 1100 Factory 2022
Aprilia RSV4 1100 Factory 2023
Aprilia RSV4 1100 Factory 2024
Ducati Panigale V4 2019
Ducati Panigale V4S 2019
Ducati Panigale V4R 2019
BMW S1000RR 2017
Kawasaki ZX1000 NINJA H2 2015
Kawasaki ZX1000 NINJA H2 2016
Kawasaki ZX1000 NINJA H2 2017
Kawasaki ZX1000 NINJA H2 2018
Kawasaki ZX1000 NINJA H2 2019
Kawasaki ZX1000 NINJA H2 2020
Kawasaki ZX1000 NINJA H2 2021
Kawasaki ZX1000 NINJA H2 2022
Kawasaki ZX1000 NINJA H2 2023
Kawasaki ZX1000 NINJA H2 2024
BMW S1000RR 2018
Yamaha YZF-R1 2020
Suzuki GSX-R1000R 2020
Suzuki GSX-R1000 2020
Yamaha YZF-R1M 2020
Yamaha YZF-R1M 2021
Yamaha YZF-R1M 2022
Yamaha YZF-R1M 2023
Yamaha YZF-R1M 2024
Kawasaki ZX-10R 2020
Kawasaki ZX-10RR 2020
Kawasaki ZX-10R SE 2020
BMW S1000RR 2020
BMW S1000RR 2021
BMW S1000RR 2022
BMW S1000RR 2023
BMW S1000RR 2024
BMW S1000RR (DDC) 2019
BMW S1000RR (DDC) 2020
BMW S1000RR (DDC) 2021
BMW S1000RR (DDC) 2022
BMW S1000RR (DDC) 2023
BMW S1000RR (DDC) 2024
BMW S1000RR-M 2020
BMW S1000RR-M 2021
BMW S1000RR-M 2022
BMW S1000RR-M 2023
BMW S1000RR-M 2024
Honda CBR1000RR-SP 2018
Honda CBR1000RR-SP 2019
Honda CBR1000RR-R 2020
Honda CBR1000RR-R-SP 2020
Ducati 1098S 2007
Ducati 1098S 2008
Ducati 1198S 2009
Ducati 1198S 2010
Ducati Panigale V4R 2020
Ducati Panigale V4R 2021
Ducati Panigale V4R 2022
Ducati Panigale 1299R Final Edition 2017
Suzuki GSX-R1000R 2021
Suzuki GSX-R1000R 2022
Suzuki GSX-R1000R 2023
Suzuki GSX-R1000R 2024
Suzuki GSX-R1000 2021
Honda CBR1000RR-R 2021
Honda CBR1000RR-R 2022
Honda CBR1000RR-R 2023
Honda CBR1000RR-R 2024
Honda CBR1000RR-R-SP 2021
Honda CBR1000RR-R-SP 2022
Honda CBR1000RR-R-SP 2023
Honda CBR1000RR-R-SP 2024
Kawasaki ZX-10RR 2021
Kawasaki ZX-10RR 2022
Kawasaki ZX-10RR 2023
Kawasaki ZX-10RR 2024
BMW M1000RR 2021
BMW M1000RR 2022
BMW M1000RR 2023
BMW M1000RR 2024
Kawasaki ZX-10R 2022
Kawasaki ZX-10R 2023
Kawasaki ZX-10R 2024
Aprilia RSV4 1000RF 2019
Yamaha YZF-R1 2021
Yamaha YZF-R1 2022
Yamaha YZF-R1 2023
Yamaha YZF-R1 2024
Kawasaki ZX-10R 2021
Aprilia RSV4 1100 2021
Aprilia RSV4 1100 2022
Aprilia RSV4 1100 2023
Aprilia RSV4 1100 2024
Aprilia RSV4 1000RR 2020
