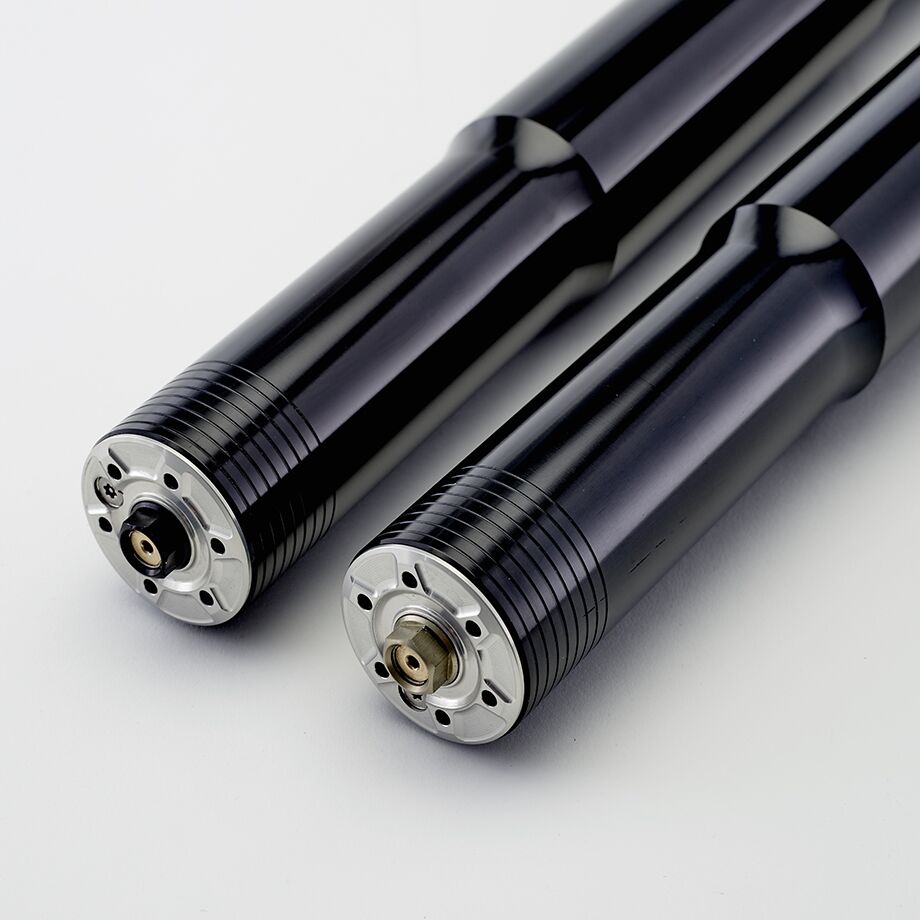

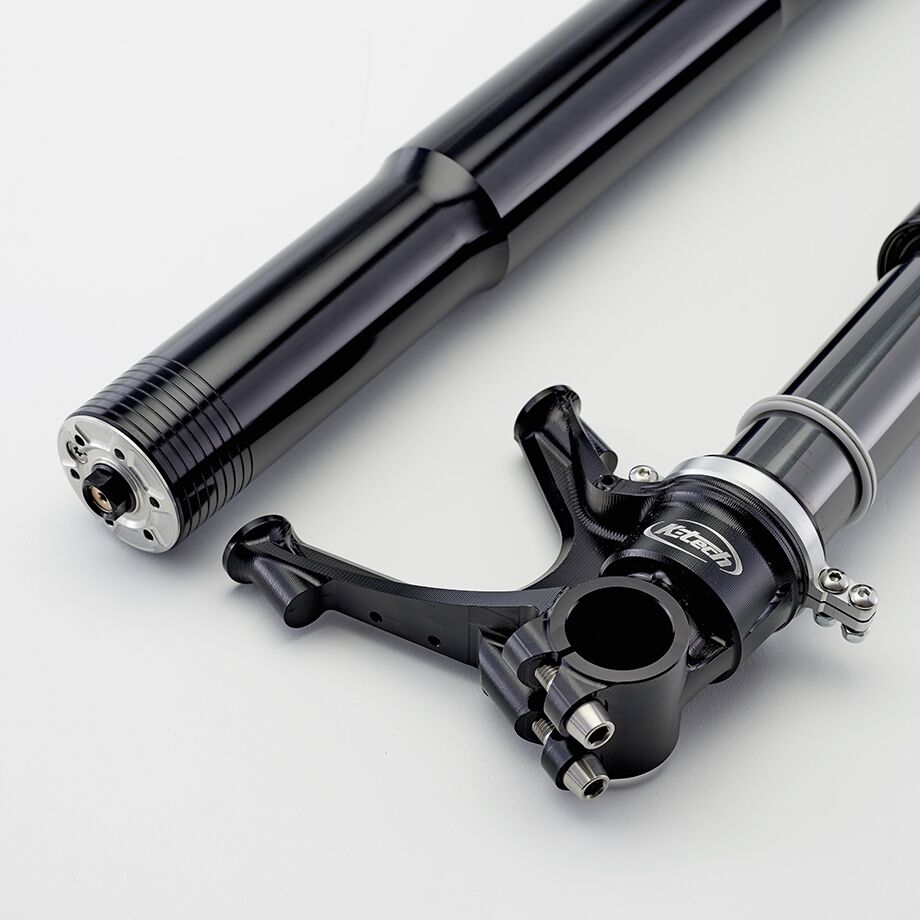

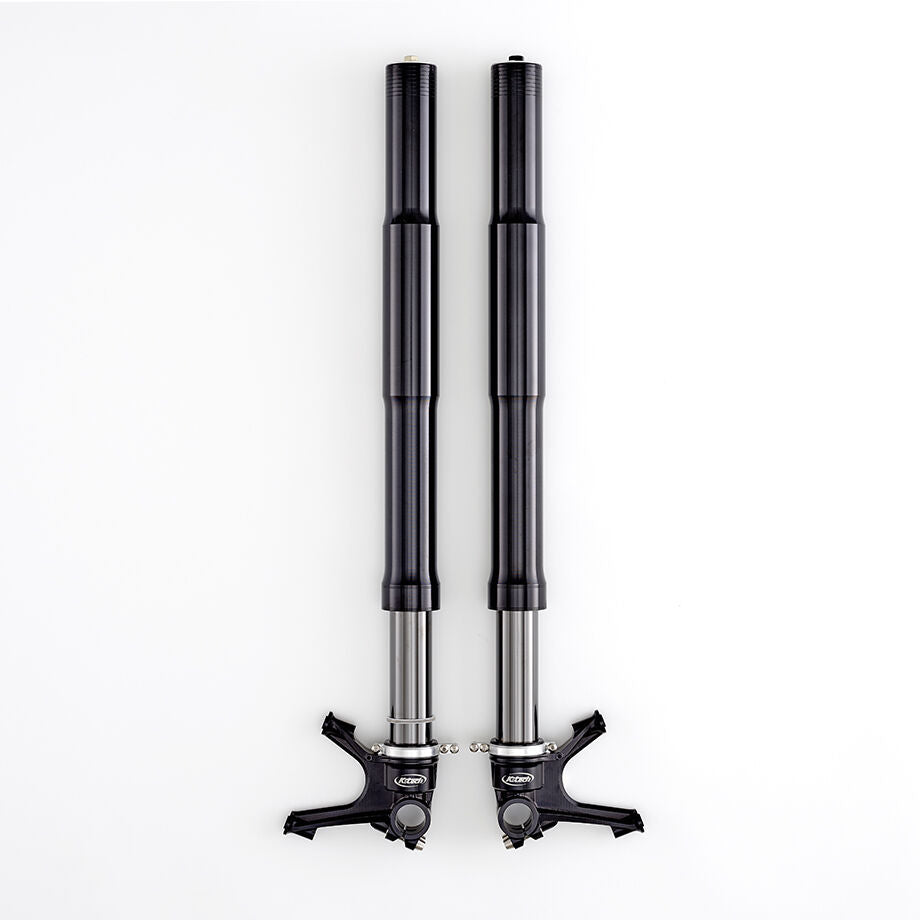

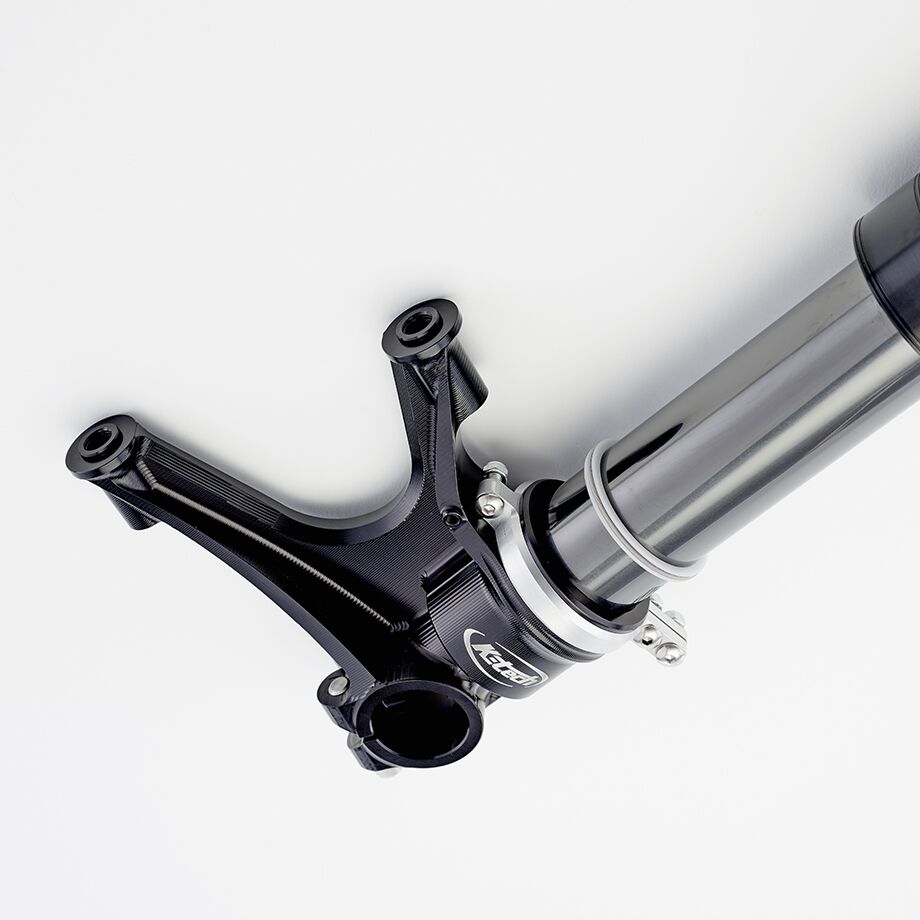

FRONT FORK KTR-4 WITH INDEPENDENT DAMPING SYSTEM for Yamaha YZF-R1

K-Tech KTR-4 IDS replacement front forks comes with Independent Damping System. The 25mm open cartridge system ha independent compression and rebound damping adjustment and adjustable spring preload. The KTR-4 front fork is manufactured in house to the same standard as all our performance products, using the highest grade materials and strict tolerances.

TO MOUNT THESE FORKS YOU NEED AFTERMARKET CLAMPS, HANDLEBARS, WHEEL SPINDLE INSERTS ETC.

• Length:- 770mm
• Stroke:- 130mm
• 30 clicks compression adjustment
• 30 clicks rebound adjustment
• 18mm preload adjustment
• Independent Damping System technology
• Outertube material 7075-T6
• Slide Pipes DLC coated and superfinished
• Axle brackets material 7075-T6 for maximum strength and durability
• Suitable for 290-320mm disc diameters with 108mm centre caliper's
• Supplied with three pairs of springs and the necessary tools needed to change them
• Wide range of spring rates available

Fits to:

• Yamaha YZF-R1 2015-2024
• Yamaha YZF-R1M 2015-2024
